Application

storage rooms for fresh and frozen products
high temperatures (over +2 ºC) for 3.5 mm or 4 mm
medium temperatures (over -15 ºC) for 6 mm
low temperatures (over -35 ºC) for 8.5 mm

Series features

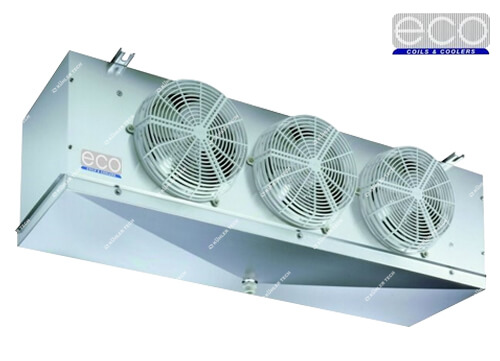

ceiling evaporators
96 models with cooling capacity from 1.05 kW to 54.30 kW
1)(in ta = 0 ºC, TD=8K for R404A)

Coil

corrugated aluminum fins
fin spacing - 3.5mm; 4 mm; 6 mm or 8.5 mm
copper, double rifled, cross-grooved tubes of diameter 12.7 mm after expansion
tubes geometry - 37.5 mm x 32.5 mm
connections equipped with 1/4" SAE service valve

Fans

from 1 to 6 fans of diameter 250 mm; 315 mm; 450 mm or 500 mm
fan power supply- 230V/1/50Hz

Defrost

electric (ED), water (WD), or hot gas (HG) defrost
electrical heaters manufactured with stabilized titanium and stainless steel with vulcanized terminals
electric heater power from 750 W to 19800 W (400V/3/50Hz)
with water defrost - water flow from 400 l/h to 3800 l/h
